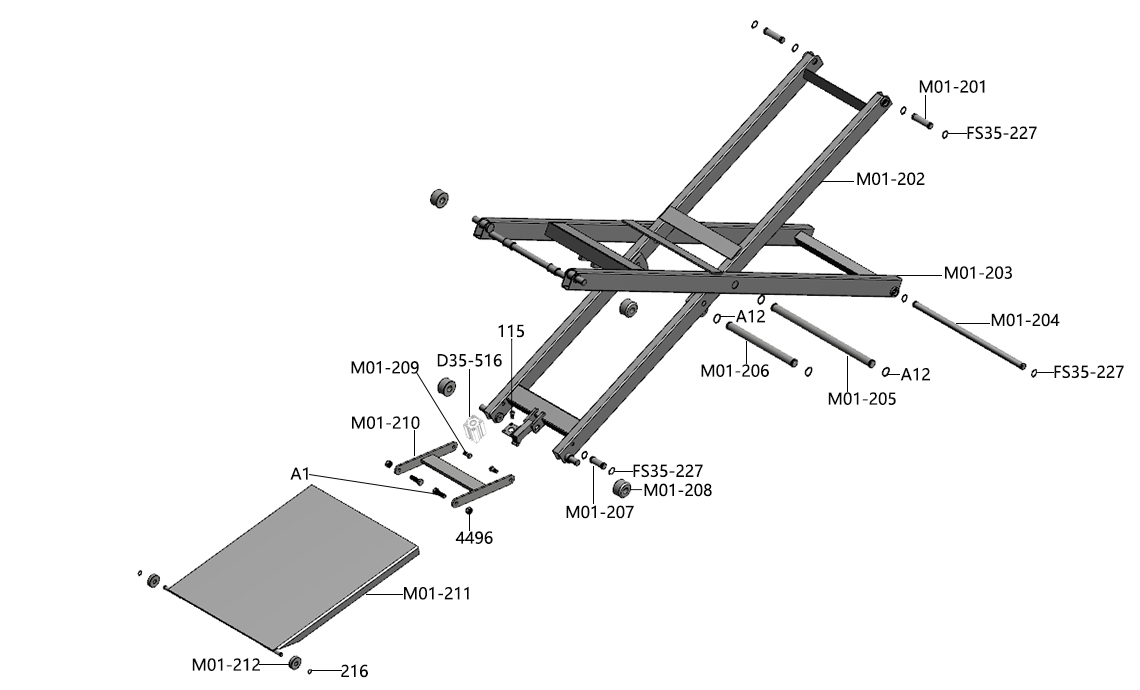

Picture Graph code Name U8 code SKU Price: Qty:
M01-204 Base pin shaft MX-300-000300-0 JZ10300100908
- +
M01-209 bolt MX-300-001100-0 JZ11601800007
- +
M01-212 Car board roller MX-300-000800-0 JZ10500300039
- +
M01-205 connecting rod pin MX-300-000100-0 JZ10300100917
- +
D35-516 cylinder SDA25X25 S-220-025025-0 EQ15001000014
- +
M01-203 External connecting rod component MZ-300-040000-Z JZ20100200071
- +
M01-206 Fixed shaft of oil cylinder MX-300-000400-0 JZ10300100919
- +
115 hex socket head cap screw GZBLS-B-011-060200-1,B-010-06020 FJ22009000097
- +
M01-207 Insurance claw shaft MX-300-000700-0 JZ10300100905
- +
M01-202 Internal connecting rod assembly MZ-300-020300-Z,MZ-300-030000-Z JZ20100200070
- +
4496 Nut GZBLS-B-004-120000-0,B-004-12000 FJ21011000007
- +
M01-211 Onboard components MZ-300-010100-Z JZ20100500056
- +
A1 Outer hex bolt FJ22012000179
- +
A12 Snap Ring B-055-250001-0,B-055-250001-0 FJ14004000013
- +
FS35-227 Snap Ring B-055-200001-0,B-055-200001-0 FJ14004000009
- +
216 Snap Ring GZBLS-B-055-120001-1,B-055-12000 FJ14004000003
- +
M01-201 Top plate pin shaft MX-300-000200-0 JZ10300100907
- +
M01-208 Up and down rollers MX-300-000600-0 JZ10500300040
- +
M01-210 Upper board support component MZ-300-010200-Z JZ20100500057
- +
