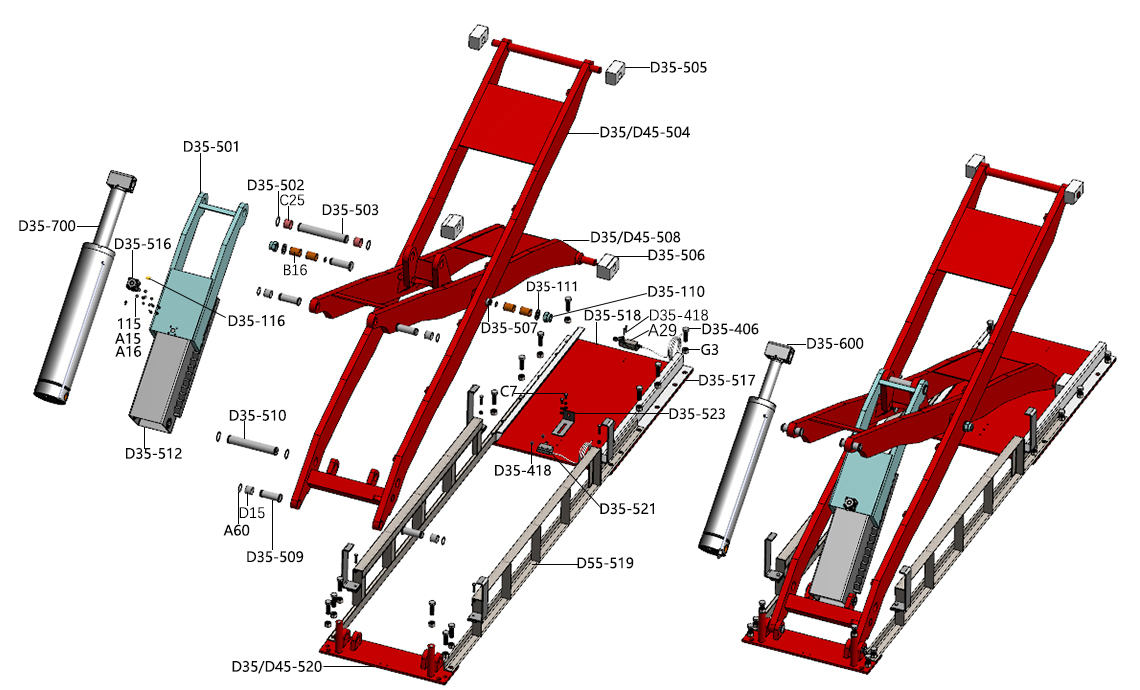

D35-507 |
Axis |
DX-3S4-004800-0 |
JZ10300100409 |
|
|
|
|
D35-518 |
baseplate |
DZ-3S4-002500-0 |
JZ10100200928 |
|
|
|
|
D35-510 |
Downward stationary shaft of oil cylinder (main machine) |
DX-3S4-000700-2 |
JZ10300100411 |
|
|
|
|
A16 |
Flat washer |
B-040-061216-1 |
FJ15006000092 |
|
|
|
|
A15 |
Flat washer |
GZBLS-B-050-060000-0,B-050-06000 |
FJ15004000018 |
|
|
|
|
D35-111 |
Flat washer |
B-040-264440-1 |
FJ15006000058 |
|
|
|
|
D35-517 |
Guide folded plate |
DZ-3S4-002600-0 |
JZ10200501067 |
|
|
|
|
115 |
hex socket head cap screw |
GZBLS-B-011-060200-1,B-010-06020 |
FJ22009000097 |
|
|
|
|
D35-512 |
insurance case |
DZ-3S4-050000-Z |
JZ20101600053 |
|
|
|
|
A29 |
limit switch |
S-060-008104-1 |
DD12007000005 |
|
|
|
|
D35-521 |
limit switch AZ7312 |
S-060-007312-0,S-060-007312-0 |
DD12007000008 |
|
|
|
|
D35-523 |
limit switch support |
DX-3S4-000800-0 |
JZ10200501066 |
|
|
|
|
D35/D45-504 |
Main connecting rod of the host |
DZ-3S4-020000-Z |
JZ20100200108 |
|
|
|
|
D35/D45-508 |
Main engine auxiliary connecting rod |
DZ-3S4-030000-Z |
JZ20100200109 |
|
|
|
|
D35-110 |
Nut |
B-004-240001-1 |
FJ21003000008 |
|
|
|
|
G3 |
Nut |
B-004-160001-0 |
FJ21011000010 |
|
|
|
|
D35-406 |
Outer hex bolt |
B-014-160501-1 |
FJ22012000059 |
|
|
|
|
C7 |
Outer hex bolt |
B-014-080161-1 |
FJ22012000094 |
|
|
|
|
D55-519 |
Packing rack |
DZ-5S4-150000-Z |
JZ20101300066 |
|
|
|
|
D35-116 |
Quick coupler |
S-010-000506-0 |
EQ11005000032 |
|
|
|
|
D35-418 |
screw |
B-024-040251-0 |
FJ19022000024 |
|
|
|
|
C25 |
Shaft sleeve |
S-040-003525-0 |
FJ11002000025 |
|
|
|
|
D15 |
Shaft sleeve |
S-040-003025-0 |
FJ11002000013 |
|
|
|
|
B16 |
Shaft sleeve |
S-040-003040-0 |
FJ11002000017 |
|
|
|
|
D35-506 |
Sliding block |
DG-3S4-000200-0,DZ-3S4-000200-0 |
JZ12100200059 |
|
|
|
|
D35-505 |
Sliding block |
DG-3S4-000300-0,DZ-3S4-000300-0 |
JZ12100200060 |
|
|
|
|
D35/D45-520 |
Small base plate |
DZ-3S0-020000-0 |
JZ20100100037 |
|
|
|
|
D35-502 |
Snap Ring |
B-055-350001-0 |
FJ14004000017 |
|
|
|
|
A60 |
Snap Ring |
GZBLS-B-055-300001-0,B-055-30000 |
FJ14004000015 |
|
|
|
|
D35-509 |
Stationary shaft(sub machine) |
DX-3S4-000400-0 |
JZ10300100404 |
|
|
|
|
D35-501 |
Two teeth insurance holder |
DZ-3S4-060000-Z |
JZ20101600054 |
|
|
|
|
D35-516 |
unlock cylinder |
S-220-025025-3 |
EQ15001000002 |
|
|
|
|
D35-503 |
Upper fixed shaft |
DX-3S4-000600-1 |
JZ10300100410 |
|
|
|
